Anti-corrosion and Ultra-weather Resistant Thermoset Powder Coating for Electric Cabinet
◎ Introduction
This series of powder coatings has good adhesion, and the coating film has excellent corrosion resistance and outdoor aging resistance. It is suitable for the coating of various outdoor products exposed to the sun for a long time.
Some electrical and communication cabinets are exported to countries with marine climates such as Northern Europe, Finland, Norway, etc., which have high requirements on the weather resistance and corrosion resistance of powder coatings, and meet the highest performance requirements of 1500 hours of neutral salt spray test and 1500 hours of aging test.
◎ Key Features
Good adhesion
Excellent corrosion resistance
Excellent outdoor aging resistance
Not includes a solvent and other volatile, environmental-friendly.
◎ Composite Coating Properties
| Properties | Index | Test Result |
| Adhesion (75±3ºC, 48h) | ≤ Grade 2 | Grade 2 |
| Impact Resistance | 50Kg·cm | Pass |
| Adhesion (Cross-Hatch) | Grade 0 | Grade 0 |
| Flexibility | 3mm | 3mm |
| Pencil Hardness | ≥ 1H | 2H |
| Cupping Test | ≥ 5mm | 6mm |
| Salt Spray Test 1500h | Corrosion width ≤ 3mm | Corrosion width ≤ 2mm |
| Damp Heat Test 1000h | No bubbles, no falling off | No bubbles, no falling off |
| Water Resistance 3000h | No bubbles, no falling off | No bubbles, no falling off |
| Natural Weather Resistance (10 years of natural exposure in Hainan) | Gloss retention ≥ 60%, color difference ≤ 3.0 | Gloss retention ≥ 66.4%, color difference: 2.3 |
| Artificial Accelerated Aging Xenon Lamp 1500h | Gloss retention ≥ 60%, color difference ≤ 3.0 | Gloss retention: 80.8%, color difference: 0.31 |
◎ Coating Craft
Spraying Craft: Primed with epoxy (zinc rich) insulating powder, top coat with polyester super weather resistant powder.
Spraying Method: Electrostatic spraying or fluidized bed dipping.
Curing Craft: Two coats and one bake or two coats and two bakes.
Curing Condition: 200ºC/15min, could be designed according to user needs.
Film Thickness: It is determined according to the actual application of the customer.
◎ Transportation and Storage
Carton packaging, net weight 20 or 25kg.
Non-dangerous goods, no special transportation requirements.
Store in a cool, dry place below 25°C.
Shelf Life: 6 months.

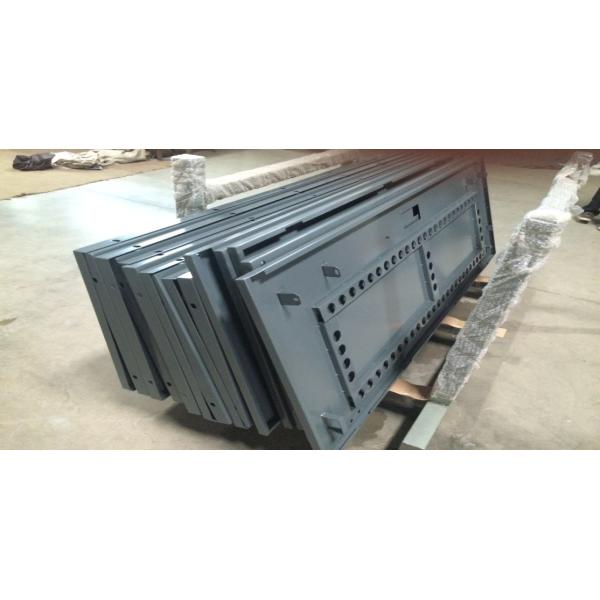

◎ Application Examples
Primed epoxy powder
Top coat with super weather resistant powder
